1KW Grid Tie Micro Inverter DC Input 10.8-30V Or 20-45VDC, AC Output 90V-140V Or 190V-260VAC For Solar And Wind System

  • 1 - 4 Pieces
    $89.00
  • 5 - 9 Pieces
    $84.00
  • 10 - 49 Pieces
    $79.00
  • >=50 Pieces
    $70.00
Type:
Solar Generator
Lead Time:
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

Graphic customization (Min. Order: 10 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
R&X
Model Number:
RX-OGI-1000
Rated power:
1000W
DC Input Range:
10.8-30VDC / 20-45VDC
AC Output:
120VAC(90-140VAC) / 230VAC(190-260VAC)
Warranty:
10 Years
Supply Ability
Supply Ability:
100.0 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
16*13*6cm
1 PCS/carton
Port
Any port is OK
Picture Example:
package-img
package-img
Lead Time :
Quantity(Pieces) 1 - 20 >20
Est. Time(days) 15 To be negotiated
Product Description

1KW Grid Tie Micro Inverter DC Input 10.8-30V Or 20-45VDC, AC Output 90V-140V Or 190V-260VAC For Solar And Wind System

Smart grid tie inverter is a compact unit, which directly converts direct current into alternating current for powering appliances and/or office equipments and connecting to utility grid. The AC output from Smart Microinverter is synchronized and in-phase with the utility grid. It is a key device of power generation systems such as PV power generation system, wind turbine power generation system. Smart Microinverter specially optimized design to work with modularization of DC power supplies which includes the mainstream solar modules, 18V (36 cells), 24V (60 cells) and 36V (72 cells) monocrystal and/or Polycrystalline solar panels, wind turbines and batteries. Smart Microinverters are stabilization, reliable and high conversion efficiency items. It is the best choice for PV power generation systems.

Smart Microinverter can be easily placed and attached to the rack underneath of PV module. No need spaces for independent installation and low voltage DC wire connects from the PV module to Smart Microinverter can eliminate the risk of high DC voltage. Distributed modularization design philosophy for Smart Microinverter insures the productiveness of the whole system and will not affect by a single point of failure. Each Smart Microinverter is individually connected to each PV module in the array. This unique configuration means that an individual Maximum Peak Power Point Tracker (MPPT) controls each PV modules and insures that the maximum power available from each PV module is exported to the utility grid regardless of the performance of the other PV modules in the array which may be affected by shading, soiling, orientation or mismatch, etc. Smart Microinverter insures top performance for maximizing energy production from the whole PV system and gets return on investment in less time.
Product Paramenters
Rated Power
1000Watt
Solar Panels
36cells-Vmp:18-21V:Voc:20-24V
60cells-Vmp:26-30V:Voc:34-38V
72cells-Vmp:35-39V:Voc:42-46V
DC Input Range
10.8-30VDC
20-45VDC
MPPT Voltage
15-22VDC
24-38VDC
DC MAX. Current
70A
45A
AC Output
120VAC(90-140VAC)                                      230VAC(190-260VAC)
Frequency
50Hz/60Hz(Auto control)
Power Factor
>98%
THD
<5%
Phase Shift
<2%
Efficiency
120VAC(90-140VAC) Version
Peak Efficiency
85
88
Stable Efficiency
83
86
Efficiency
230VAC(190-260VAC) Version
Peak Efficiency
88
88
Stable Efficiency
83
86
Protection
Islanding; Short-circuit; Low Voltage;
Over Voltage; Over temperature Protection
Working Temperature
-20℃-65℃
Working Humidity
0%~90%RH non-condensing
Waterproof
Indoor design
Show
Luminous Diode(LED)
Cooling
Fan
Stand-by Power
<1W
EMC
EN61000-6-3:2007 EN61000-6-1:2007
Grid Disturbance
EN 50178+EN 62109-1+VDE0126-1-12
Grid Detection
DIN VDE 1026 UL1741

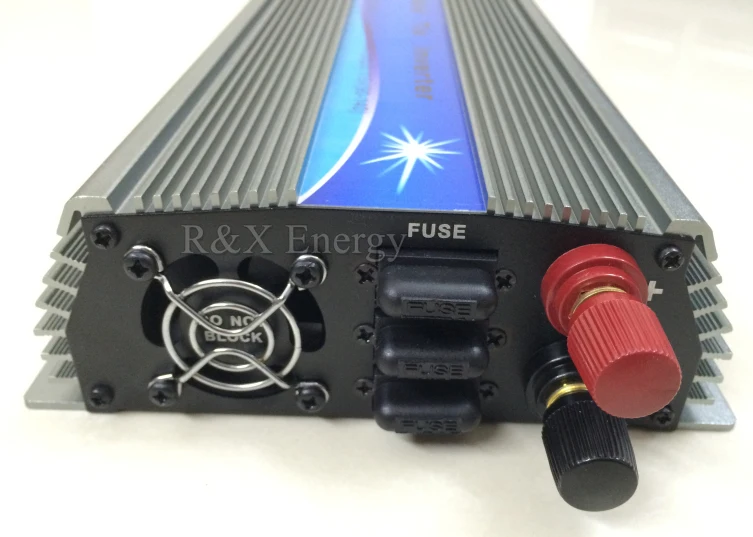

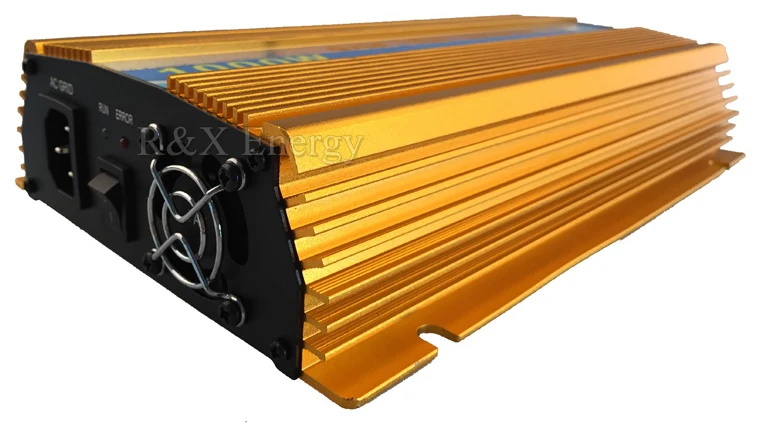

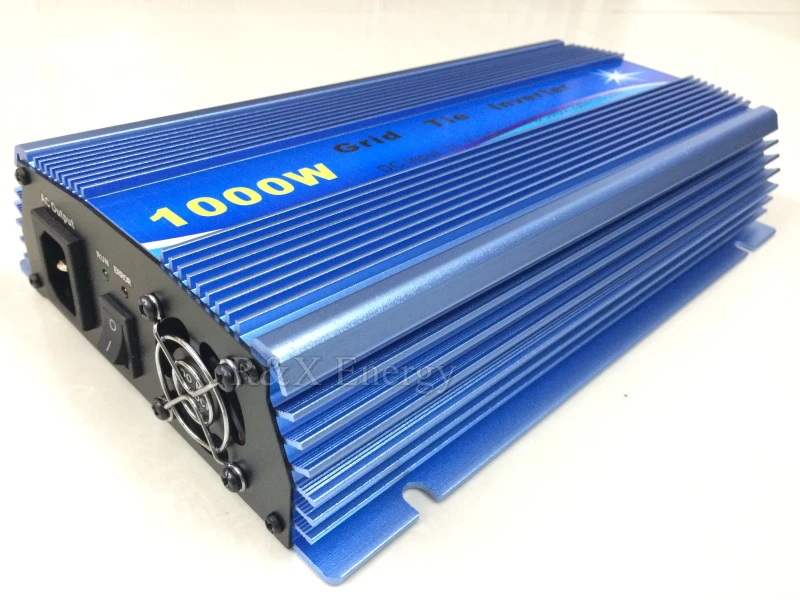

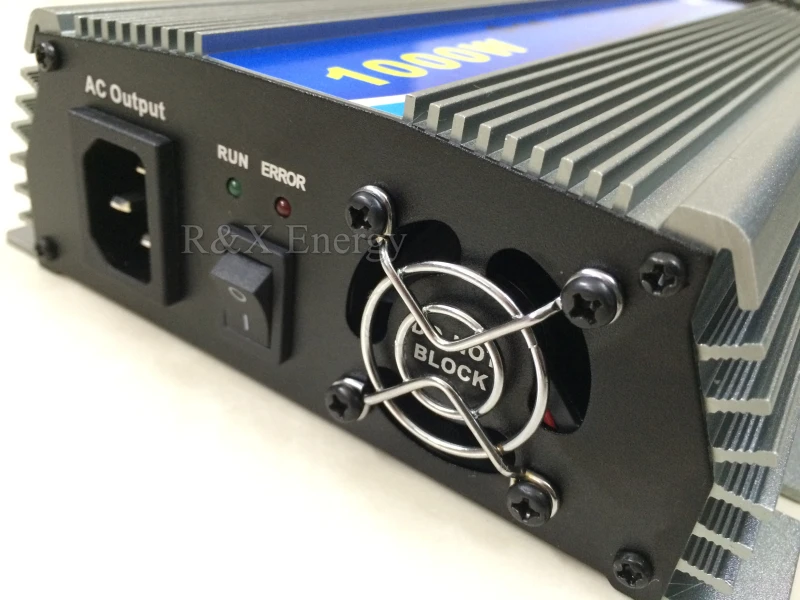

Details Images

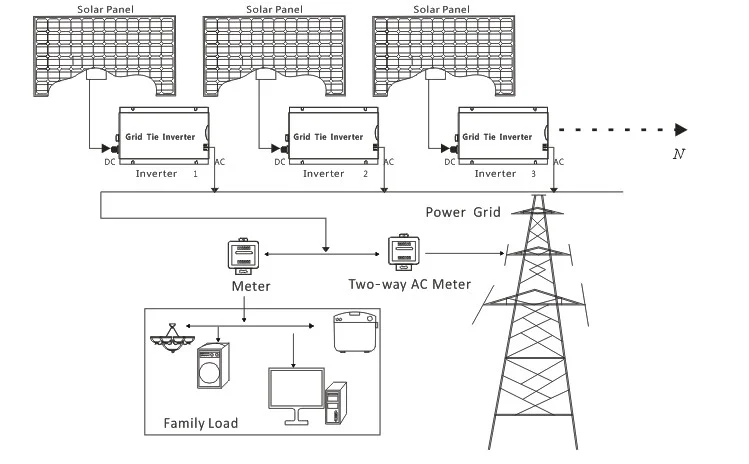

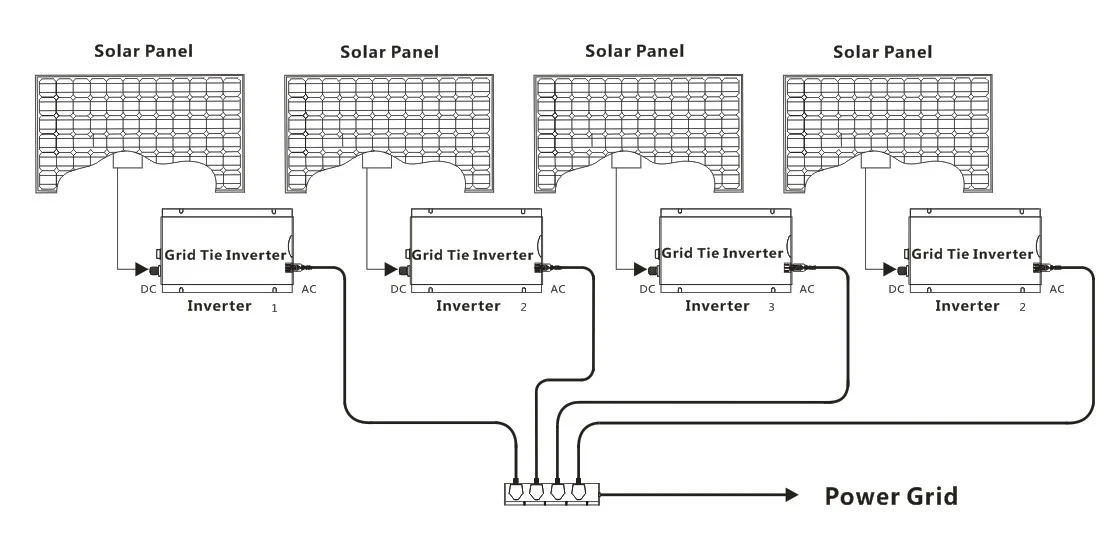

Wiring Diagram
