Low rpm small wind turbine generator for home, low noise windmill CE&ROHS approval, 12V/24V optional wind generator

FOB Reference Price:Get Latest Price
US $200-350 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
R&X
Model Number:
SF-600-5
Type:
Wind Power Generator
Start-up Wind Speed:
2.5m/s
Supply Ability
Supply Ability:
100 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
One Piece/Box ; Package Size:27.17in x 14.17in x 9.06in
Port
Shenzhen
Lead Time :
3 Working Days After Got Payment
Video Description

Low rpm small wind turbine generator for home, low noise windmill CE&ROHS approval, 12V/24V optional wind generator











Sample Purchase online: Click here









UPDATED Wind Turbine Generator Kit 600W Max 12/24V Option NEW

0



Brand New in box

CE Certificate

ISO9001:2000 Quality Certification

RoHS Certification

Large power, low volume, high efficiency

12 or 24 volt (We stock 12V and 24V modal for your choose. Please email us you want the 12V or 24V modal after you pay for the item)

600 watts maxmauim output

Carbon fiber blades, high efficiency of anti-wind ability,move mutely and steadily

Blades with the ability of automatically stall protection under strong wind

3 Years Free Warranty

 .jpg

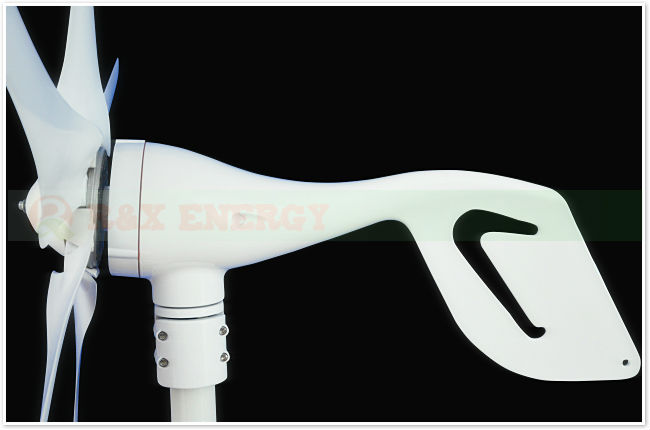

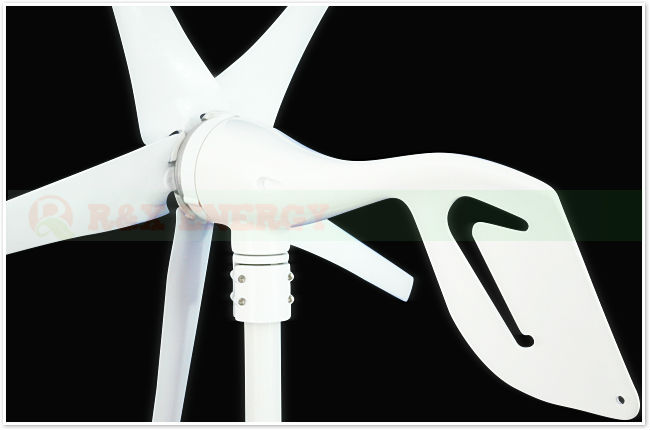

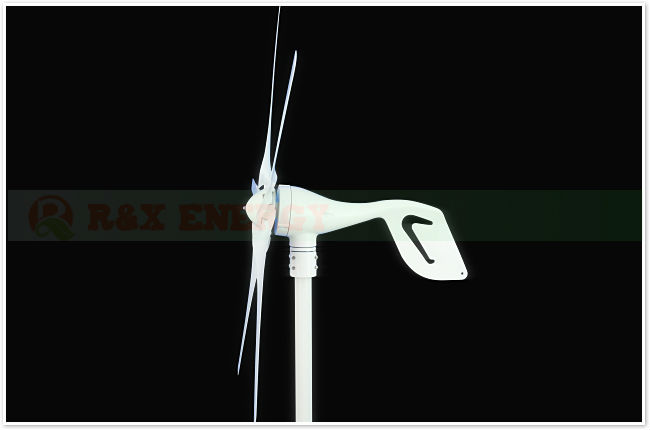

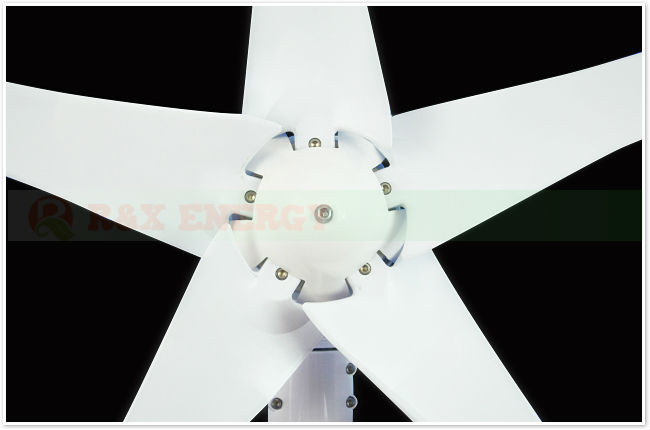

Products Photos


IntroductionWind is in nature inexhaustible energy, but also not pollute the environment is one of the energy. Changeing the wind energy to power energy is used in industy production and normal life,which is human ideal energy acquisition modes.                                                                                                                                This Wind Turbine Generator includes a high efficiency motor to get the most from the turbine.This turbine comes with one of the best warranties in  the industry.                        This wind generator turbine is small yet versatile turbine and can produce up to 600 Watts Max. It features a special coating that protects the generator, making it suitable for locations. The turbine begins to supply power in wind speeds as low as 15m/s
Technical DataModelSF-600-5
NameWhite Pigeon (II)
Rated Power400W
Rated DC VoltageDC12V/24V
Rated Current33A/25A
Rated Speedy640r/m
Max Power600W
Start-up wind speed2.5m/s
Cut-in wind speed3.5m/s
Cut-out wind speed15m/s
Rated wind speed12m/s
EngineThree-phase permanent magnet generator
Rotor diameter1185 mm
Output line anti-winding deviceOverall three-phase commutator
Wind protectionTip stall protection+turned protection+electromagnetic brake
Life span15 years
Equipment surface protectionAluminum oxide+plastic coating
working temperature-40°c to 70°c
Weight8.5kg
Power Curve600.jpg
Monthly Power Generation Cure 600w monthly power generation curve.jpg



  Item Units and Pictures (what you see what you get)

Packing list:

  • wind/solar hybrid controller
  • 5 pcs of blades
  • wind turbine hub
  • screw bolts and nose cone
  • Wind Turbine

    0-controller .jpg1-12-2system wiring diagram 1.jpg



Application Of SF-600-5

WIND&PV HYBRID Generator System.jpg
