2018 Hot Selling Wind Generator ,Fit For Marine Ship Or Home Use

FOB Reference Price:Get Latest Price
US $100-120 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
R&X
Model Number:
SF-600-3
Type:
Wind Power Generator
is_customized:
Yes
Certification:
RoHS CE ISO9001:2000
Application:
Wind power system
Number of blade:
3 PCS
Color:
White and Black
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Carton dimension: 670mm/350mm/210mm
1 PCS/carton
Port
SHANGHAI/SHENGZHN/NIONGBO
Lead Time :
3-7 work days after we recive your payment
Video Description

Hot Selling Wind Generator ,Fit For Marine Ship Or Home Use









Sample Purchase online: Click here













Introduction

Wind is in nature inexhaustible energy, but also not pollute the environment is one of the energy.

Changing the wind energy to power energy is used in industry production and normal life,

which is human ideal energy acquisition modes.This Wind Turbine Generator includes a high

efficiency motor to get the most from the turbine.This turbine comes with one of the best

warranties in the industry.



This wind generator turbine is small yet versatile turbine and can produce up to 600 Watts Max.

It features a special coating that protects the generator, making it suitable for locations.

The turbine begins to supply power in wind speeds as low as 3m/s











Technical Data



Model

SF-600

Brand

R&X

Rated Power

400W

AC voltage

AC 12V/24V

Rated DC Voltage

DC12V/24V

Rated Current

33A/17A

Rated Speedy

640r/m

Max Power

600W

Number of blade

3 PCS

Start-up wind speed

3m/s

Cut-in wind speed

3.5m/s

Cut-out wind speed

15m/s

Rated wind speed

12m/s

Rotor diameter

1185mm

Blade material

Carbon fiber with nylon

Output line anti-winding device

Overall three-phase commutator

Wind protection

Tip stall protection+turned protection+electromagnetic brake

Life span

20years

Equipment surface protection

Aluminum oxide+plastic coating

Working temperature

-40°C to 70°C

Weight

8.5kg

Package dimension

672mm*350mm*210mm

Power Curve



Monthly Power Generation

Cure

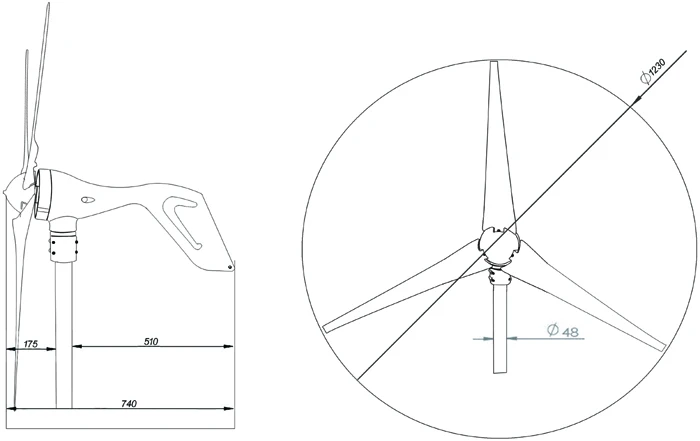

 Drawing

3















Packing list

1. Wind turbine

2. 3 PCS of blades

3. Wind turbine hub

4. Screw bolts and nose cone

5. Wind controller











Description

1.simple structure,running stably,power supply for city lamp,monitoring and home.

2. Small size and flexibility,lively Colors,beautiful curve,low noise and environmental harmony.

3. Anti-Rust,Anti-Corruption Damp-Proof,Water-Proof,Stand-Proof.

4. Brand New in box

5. CE Certificate

6. ISO9001:2000 Quality Certification

7. ROHS Certification

8. Large power, low volume, high efficiency

9. Carbon fiber blades, high efficiency of anti-wind ability,move mutely and steadily

10. Blades with the ability of automatically stall protection under strong wind

11. 3 years free warranty



















IMG_5544.jpg .jpg



IMG_5551.jpg .jpg



wind generator.jpg













Application




7
